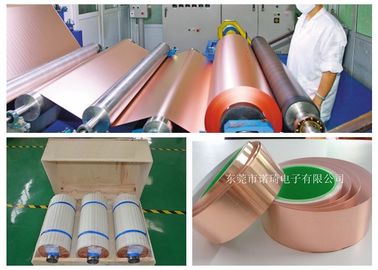

Thin Copper Foil Excellent Uniformity / Infiltration 500 - 5000m Length

Thin Copper Foil Excellent Uniformity / Infiltration 500 - 5000m Length

Thin Copper Foil Excellent Uniformity / Infiltration 500 - 5000m Length
Thin Copper Foil Excellent Uniformity / Infiltration 500 - 5000m Length

बड़ी छवि :  Thin Copper Foil Excellent Uniformity / Infiltration 500 - 5000m Length

उत्पाद विवरण:

Place of Origin: China,Shanghai
ब्रांड नाम: JIMA
प्रमाणन: SGS, ISO,Reach, RoHS
Model Number: RACP

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 100kg
मूल्य: Negotiation
Packaging Details: wooden carton
Delivery Time: 5-20days
Payment Terms: T/T, L/C
Supply Ability: 1500 Ton per month
विस्तृत उत्पाद विवरण
Application:: mobile phone material,cellphone thickness: 6um~12um,6micron~12micron
Standard: IPC-4562 and IPC9TM-650 Width range: 100~620mm
thickness toleranc: within +/-0.00054mm Roughness: under 0.025um
Width standard  tolerance: +/-1.5mm
हाई लाइट:

thin copper sheet

,

conductive copper foil

6um~12um thin rolled copper foil for cellphone mobile phone material lithium battery

Details

Thickness 6um~12um,6micron~12micron,0.006mm~0.012mm
Roll Width range under620 mm,Standard wisth:620mm
Roll Length range 500 - 5000 Me
Features



1. Excellent uniformity and infiltration.

2. Surface:No indentation​,No scratches​,No wrinkles​,No tear​ and other defect.

3.Thickness  tolerance range :within +/-0.00054mm

5. Roughness​:0.025um

6. Width standard  tolerance:+/-1.5mm

Packing standard export wooden box package
Cu Content (%) Above99.8%
Roll Inner Diameter

76mm,152mm, and custom

MOQ

100kgs,roll weight range:150kgs~500kgs

Application





4.High Frequency conductive PCB

5.Electromagnetic Shielding Materials

6.Computer

1.Mobile material,cellphone,mobile phone

2.FPC,Flexible Printed Circuit

3.lithium lon battery






MTC of RA Rolled copper foil

Thickness

6/7/8/9/10/12um

Width ≤620mm
Item Unit Parameter
Thickness MM 0.009 0.01 0.012 0.015 0.02
Grade C1100 C1100 C1100 C1100 C1100
Copper content % ≥99.95 ≥99.95 ≥99.95 ≥99.95 ≥99.95
Area Weight g/㎡ 80±3 95±3 107±4 134±4 178±6
Double-sided(Ra) Um ≤0.17 ≤0.17 ≤0.17 ≤0.17 ≤0.17
State Normal Mpa ≥380 ≥400 ≥400 ≥400 ≥400
State Normal % ≥1.2 ≥1.4 ≥1.5 ≥1.5 ≥1.6
Conductivity 20℃ IACS ≥95% ≥95% ≥95% ≥95% ≥95%
High temperature oxidation resistance(180℃ 1hour) Qualified Qualified Qualified Qualified Qualified

 Remark: we can accept customization as per your request, Standard Width,620(±1)mm



Keep the dry environment,and is better use it in 30days.

FAQ:
Q1: What's your guarantee?
A: All our products have 6 months guarantee after you received goods, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The common delivery time is 5-20 working days. but it's depends on the items and the quantity of your order.
A: 520mm and 620mm,we accept customization for the width. we can cut it into any siz
Q3. what is your standard width?
A: 520mm and 620mm,we accept customization as request. we can cut into any size .
Q4. Can you provide COA?
Yes , we can.
Q5. Can we come to China visit factory ?
Yes ,you can .
Q6. Can you cut into small size?
Yes, we can.
Q7: What's your minimum order quantity?
A: The MOQ is 150 kg.
Q8: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
Q9. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q10. what is your standard width?

Compare between CA copper foil and ED copper foil
. Width: rolling copper foil width ≤ 620mm, electrolytic copper foil width ≤ 1380mm
. Density: rolled copper foil higher density, the surface is relatively smooth, conducive to the production of printed circuit board after the rapid transmission of the signal,

so high-frequency high-speed transmission, fine lines printed circuit board also used some calendering copper Foil.
