High Ductility Copper Foil For Pcb , ISO Width 1380mm Copper Sheet Plate

उत्पाद विवरण:

Place of Origin:	china
ब्रांड नाम:	JIMA
प्रमाणन:	SGS, ISO,Reach, RoHS
Model Number:	EDCU-HC

भुगतान & नौवहन नियमों:

Minimum Order Quantity:	100kg
मूल्य:	negotiable
Packaging Details:	wooden carton
Delivery Time:	5-15 days
Payment Terms:	T/T, L/C
Supply Ability:	1000 Ton per month

संपर्क करें

विस्तृत उत्पाद विवरण

Purity:	99.95%	Pinholes:	None
Thickness:	1/2 oz,3/4 oz,1 oz,2 oz,	Color:	red or black
Peel strength:	≥ 1 N/mm	Length Per Roll:	500 - 5000 Meter
Inter Diameter:	76 Mm，152 Mm， 3 Inch，6 Inch
प्रमुखता देना:	pure copper foil , copper sheet plate

35um High ductility electrolytic copper foil with width 1380mm

Type	High ductility (HD) ED Copper Foils
Thickness Range	1/3oz/ft²to 2oz/ft²(nominal thickness 12μm~105μm)
Width Range	550~1380mm
Performance	The perfect normal temperature storage performance
	The high temperature anti-oxidization performance
	The high temperature elongation performance
Quality standard	Reach the Ⅱ and Ⅲ requirements of the international standard IPC-4562

Features:
1. the treated foil in red
2. Excellent adhesion to etching resist

Application:
Polyimide board and Epoxy board.

Compare between CA copper foil and ED copper foil
S-THE ED Copper Foil Characteristics

Quality items		General Technical Terms
Quality items		1/3oz/ft²(12μm)	1/2oz/ft²(18μm)	1oz/ft²(35μm)	2oz/ft²(70μm)
Area Weight (g/m²)		102-112	145-161	280-305	560-610
Tensile Strength (kg/m m²)	Room Temperature	≥30	≥30	≥30	≥28
Tensile Strength (kg/m m²)	High temperature 180℃	≥17	≥17	≥17	≥20
Elongation (%)	Room Temperature	≥3	≥3	≥5	≥10
Elongation (%)	High temperature 180℃	≥2	≥2.5	≥3	≥5
Surface Roughness (μm)	Shiny Surface Ra	≤0.43	≤0.43	≤0.43	≤0.43
Surface Roughness (μm)	Matte Surface Rz	≤6	≤7	≤10	≤12
Peel Strength (kg/cm)		≥1.1	≥1.2	≥1.8	≥2.2
Leakage points (points/m²)		≤5		No
High Temperature Anti-Oxidization Performance		Treat in the 180℃ constant temperature for 60 minutes, there is no oxidation stain

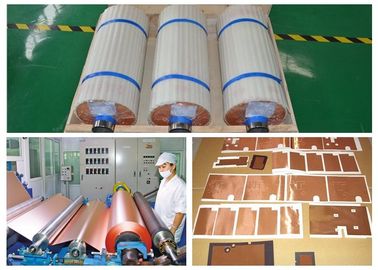

Package:wooden carton

FAQ:

Q1: Can you supply the sample?

A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.

Q2. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q3. what is your standard width?

A: 1380mm,we accept customization for the width. we can cut it into any size that you demand after pass discussing.

Typical properties of high ductility copper foil

Classification

Unit

Requirement

Test Method

Foil Designation

IPC-4562A

Nominal thickness

12um

1/2 OZ

3/4 OZ

1
OZ

2
OZ

3
OZ

IPC-4562A

Area Weight

g/㎡

107±4

153±5

228±8

285±10

580±15

860±20

IPC-TM-650
2.2.12.2

Purity

％

≥99.8

IPC-TM-650
2.3.15

Foil Profile

Shiny side (Ra)

սm

≤0.4

IPC-TM-650
2.3.17

Matte side(Rz)

≤6

≤8

≤10

≤15

≤20

Tensile Strength

R.T.(23℃)

Mpa

≥150

≥235

≥280

IPC-TM-650
2.3.18

Elongation

R.T.(23℃)

％

≥5

≥10

≥15

IPC-TM-650
2.3.18

Subject

Ω.g/㎡

≤0.170

≤0.166

≤0.162

IPC-TM-650
2.5.14

Peel Strength(FR-4)

N/mm

≥1.0

≥1.3

≥1.6

≥2.1

IPC-TM-650
2.4.8

Pinholes&porosity

Number

IPC-TM-650
2.1.2

Anti-oxidization

R.T.(23℃)

day

180

H.T.(200℃)

Minutes

3. Standard Width,1380(±1)mm,May according to the customer request tailor.
We test the peel strength with FR-4(Tg140) prepreg ,please reconfirm with your pp.
