| Place of Origin: | CHINA |
| ब्रांड नाम: | ED-JIMA |
| प्रमाणन: | SGS, ISO,Reach, RoHS |
| Model Number: | EDMCCL |
| Minimum Order Quantity: | 150kgs |
|---|---|
| मूल्य: | USD13~19/kgs |
| Packaging Details: | wooden box |
| Delivery Time: | 7-15days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1200 per month |
| Thickness: | 35um，0.035mm，1oz，35micron | Standard: | IPC-4562 |
|---|---|---|---|
| Peel strength: | above1.7kg/cm | Weight range: | 100~ 500kgs，or custom |
| Shape: | roll | performance: | High thermal endurance |
| प्रमुखता देना: | roll of copper foil,electrodeposited copper foil |
||
Product Description
High elongation electrolytic copper foil 0.035mm with high thermal endurance for MCCL copper foil ipc-4562
| 1.The treated foil in gray or red | |
| 2.High peel strength | |
| Features | 3.Good etch ability |
| 4.Excellent adhesion to etching resist | |
| 5.Anti foil cracking by high elongation at elevated temperature | |
| 6.Eco-friendly products and processes | |
| 7.High temperature elongation | |
| 8.High thermal endurance |
| Application | 1.PCB board,pcb |
| 2.Antennas pcb | |
| 3.Metal Copper Clad Laminate | |
| 4.MCCL | |
| 5.CCL,Copper Clad Laminate |
Electrolytic copper foil shows:
Mill Test Certificate of High temperature elongation ED copper foil
| Thickness | um | 12 | 18 | 35 | 70 |
IPC-TM-650 2.3.12 |
|
| Area weight | g/m² | 107±10 | 153±15 | 305±30 | 610±61 |
IPC-TM-650 2.2.12 |
|
| Roughness | (RA) | μm | <0.43 | <0.43 | <0.43 | <0.43 |
IPC-TM-650 2.2.17 |
| (RZ) | μm | <7 | <8.0 | <10.0 | <14 | ||
|
Copper≥ |
% | Above99.8 |
IPC 4562 2.3.15 |
||||
| Tensile Strength | State normal | kg/mm2 | >21 | >21 | >28 | >28 |
IPC 4562 2.4.18 |
| State temper (180℃) | >15 | >15 | >15 | >15 | |||
| ElongationI | state normal | % | >3.0 | >4 | >5 | >5 |
IPC 4562 2.4.18 |
| state temper (180℃) | % | >2 | >2 | >3 | >3 | ||
| Peel strength | kg/cm | >1.1 | >1.3 | >1.7 | >1.9 |
IPC 4562 2.4.8
|
|
|
High temperature oxidation resistance(225℃, 10min) |
No color change | CCP Standard | |||||
| Solderability | Good | CCP Standard | |||||
| Splice | ≤2 | CCP Standard | |||||
Remark:
1. Standard Width is1295(±1)mm,Max width is 1380mm,May according to the customer request tailor.

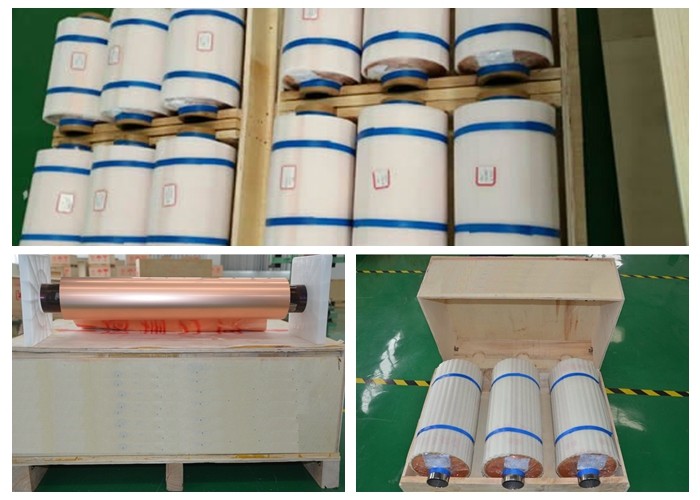

Package of ED electrolytic copper foil :
