| Place of Origin: | china.Shanghai |
| ब्रांड नाम: | JIMA |
| प्रमाणन: | SGS, ISO,Reach, RoHS |
| Model Number: | EDSHE |
| Minimum Order Quantity: | 100kg |
|---|---|
| मूल्य: | usd 15-20 kg |
| Packaging Details: | wooden carton |
| Delivery Time: | 5-15 days |
| Supply Ability: | 1000 Ton per month |
| Purity: | above 99.8% | Thickness: | 3oz，105um，105micron，0.105mm |
|---|---|---|---|
| Surface treatment: | side raw + one side polished | Splice: | under 2 |
| application: | Shielding cooper foil | max width: | 1360mm，1290mm，1380mm |
| प्रमुखता देना: | adhesive copper foil,copper shielding tape |
||
Max width 1360mm Shielding Electromagnetic electrodeposited electrolytic ED copper foil 105mic for Shielding application
| Features | 1. the treated foil in gray or red |
| 2.High peel strength | |
| 3.Good etch ability | |
| 4. Excellent adhesion to etching resist |
| Max width | 1360mm,1290mm,1380mm |
| Thickness | 105um,105micron,3oz,0.105mm |
| Internal Diameter | 76/152,or custom |
| Length per roll | 500-5000meter |
| Standard | IPC 4562,IPC-TM-650 |
| 1.Phenolic resin board | |
| Application: | 2.Epoxy board |
| 3.shielding copper foil |
MTC of Shielding Electromagnetic Copper Foil
|
Classification |
Unit | Requirement | Test Method | |||||||||||
| Foil Designation | / | T | H | M | 1 | 2 | 3 | IPC-4562A | ||||||
| Nominal thickness | / | 12um | 1/2 OZ | 3/4 OZ |
1 OZ |
2 OZ |
3 OZ |
IPC-4562A | ||||||
| Area Weight | g/㎡ | 107±4 | 153±5 | 228±8 | 285±10 | 580±15 | 860±20 |
IPC-TM-650 2.2.12.2 |
||||||
| Purity | ％ | ≥99.8 |
IPC-TM-650 2.3.15 |
|||||||||||
| Foil Profile | Shiny side (Ra) | սm | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 |
IPC-TM-650 2.3.17 |
|||||
| Matte side(Rz) | um | ≤6 | ≤8 | ≤10 | ≤10 | ≤15 | ≤20 | |||||||
| Tensile Strength |
R.T.(23℃)
|
Mpa | ≥150 | ≥220 | ≥235 | ≥280 | ≥280 | ≥280 |
IPC-TM-650 2.3.18 |
|||||
| Elongation |
R.T.(23℃)
|
％ | ≥2 | ≥3 | ≥3 | ≥4 | ≥4 | ≥4 |
IPC-TM-650 2.3.18 |
|||||
| Subject | Ω.g/㎡ | ≤0.170 | ≤0.166 | ≤0.162 | ≤0.162 | ≤0.162 | ≤0.162 |
IPC-TM-650 2.5.14 |
||||||
| Peel Strength(FR-4) | N/mm | ≥1.0 | ≥1.3 | ≥1.6 | ≥1.6 | ≥2.1 | ≥2.1 |
IPC-TM-650 2.4.8 |
||||||
| Pinholes&porosity | Number | No |
IPC-TM-650 2.1.2 |
|||||||||||
| Anti-oxidization | R.T.(23℃) | day | 180 | / | ||||||||||
| H.T.(200℃) | Minutes | 60 | ||||||||||||
1.Standard Width,1295(±1)mm,Max width is 1380mm,May according to the customer request tailor.

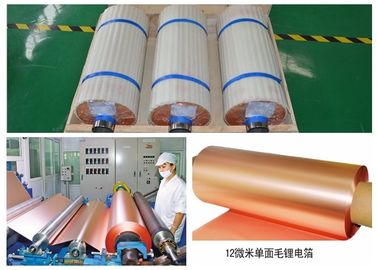

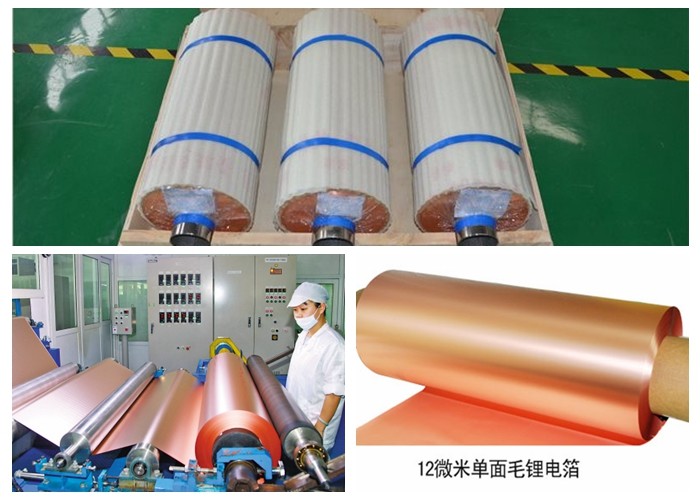

Packing and Mark of Electromagnetic Shielding copper foil :
