Samsung Mobile Rolled Copper Foil RoHS / ISO Approval 500 - 5000M Length

Samsung Mobile Rolled Copper Foil RoHS / ISO Approval 500 - 5000M Length

  • Samsung Mobile Rolled Copper Foil RoHS / ISO Approval 500 - 5000M Length
Samsung Mobile Rolled Copper Foil RoHS / ISO Approval 500 - 5000M Length
उत्पाद विवरण:
Place of Origin: china
ब्रांड नाम: JIMA
प्रमाणन: SGS, ISO,Reach, RoHS
Model Number: RACULP-S-B/G/R
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 150kg
मूल्य: negotiable
Packaging Details: wooden carton
Delivery Time: 5-17 days
Payment Terms: T/T, L/C
Supply Ability: 1500 Ton per month
संपर्क करें
विस्तृत उत्पाद विवरण
Color: red Tensile strength: ≥ 160 MPa
Peel strength: ≥ 1 N/mm Foil profile: RA≤0.15μm,Rz≤1.7μm
Application:: mobile phone material thickness: 0.012mm 12um,6um,7um,8um,9um
Standard: IPC-4562,IPC9TM-650
प्रमुखता देना:

copper foil roll

,

copper sheet roll

0.012mm ,12um,6um,7um,8um,9um​ Roll copper foil For samsung mobile​

Quickly details

Thickness 0.012mm 12um,6um,7um,8um,9um
Width Max 620 mm
Length 500-5000 M
Features



2.Excellent uniformity and infiltration.

3.double shiny side ,superior rupture endurance.


Packing wooden box
Cu above99.8%
ID 76/152/ custom
Stype roll
Application

1. usd for samsung mobile​

2. hybrid-electric vehicle.(HEV)

3. Excellent uniformity and infiltration.




Compare between CA copper foil and ED copper foil
. Width: rolling copper foil width ≤ 620mm, electrolytic copper foil width ≤ 1380mm
. Density: rolled copper foil higher density, the surface is relatively smooth, conducive to the production of printed circuit board after the rapid transmission of the signal, so high-frequency high-speed transmission, fine lines printed circuit board also used some calendering copper Foil.

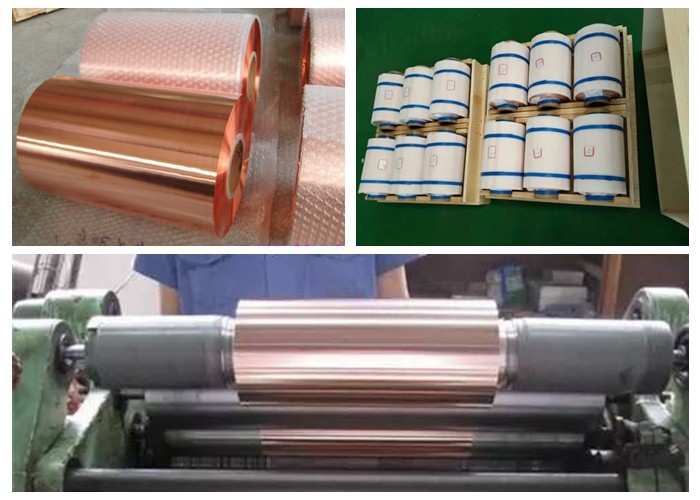

Details Package: wooden box

Samsung Mobile Rolled Copper Foil RoHS / ISO Approval 500 - 5000M Length 0


Technical data sheet of RA rolled copper foil

Thickness

6/7/8/9/10/12/15/20um

Width ≤620mm
Item Unit Parameter
Thickness MM 0.009 0.01 0.012 0.015 0.02
Grade C1100 C1100 C1100 C1100 C1100
Copper content % ≥99.95 ≥99.95 ≥99.95 ≥99.95 ≥99.95
Area Weight g/㎡ 80±3 95±3 107±4 134±4 178±6
Double-sided(Ra) Um ≤0.17 ≤0.17 ≤0.17 ≤0.17 ≤0.17
State Normal Mpa ≥380 ≥400 ≥400 ≥400 ≥400
State Normal % ≥1.2 ≥1.4 ≥1.5 ≥1.5 ≥1.6
Conductivity 20℃ IACS ≥95% ≥95% ≥95% ≥95% ≥95%
High temperature oxidation resistance(180℃ 1hour) Qualified Qualified Qualified Qualified Qualified

 Remark: accept customization, Standard Width,620(±1)mm,



FAQ:
Q1: What's your guarantee?
A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The common delivery time is 5-35 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: The MOQ is 150 kg.
Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6. what is your standard width?
A: 520mm and 620mm,we accept customization for the width. we can cut it into any siz
Q11. Can you provide COA?
Yes , we can.
Q13. Can we come to China visit factory ?
Yes ,you can .
Q14. Can you cut into small size?
Yes, we can.
Q15.is the copper foil Floating in box?
Yes, it is .
Q16. How to save after the box opened?

Keep the dry environment,and is better use it in 30days.
